| 크기: | 555*210*143mm | 위르라티: | 5 년 |
|---|---|---|---|
| 힘: | 30W-300W | 전력 계수: | > 0.95 |
| 수명: | >50,000hrs | 입력 전압: | AC100-277V |
| 신체 재료: | ADC12 국제 스타다드 알루미늄 | 램프 사이즈: | 60mm |
| 강조하다: | 0.95 power factor LED street light,60mm lamp size LED street fixture,ADC12 aluminum LED street light |
||
| Attribute | Value |
|---|---|
| Size | 555*210*143mm |
| Warranty | 5 Years |
| Power | 30W-300W |
| Power Factor | >0.95 |
| Lifespan | >50,000hrs |
| Input Voltage | AC100-277V |
| Body Material | ADC12 International Standard Aluminium |
| Lamp Size | 60mm |

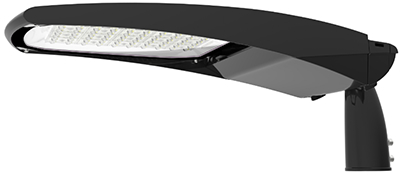

This LED Street Light Fixture is a top-of-the-line outdoor high power LED street light that offers superior illumination for streets, roads, parking lots, and other outdoor spaces. With a sleek and modern design, this fixture provides efficient and reliable lighting solutions for various outdoor applications.
Key features include high-quality driver options (Inventronics, MOSO, SOSEN, Philips, and Osram) ensuring stable performance with minimal energy consumption. The durable IP66-rated construction withstands harsh weather conditions, requiring minimal maintenance.
The compact 555*210*143mm size allows for easy installation, with an adjustable street tilt adapter for optimal positioning. With a power factor >0.95 and 60mm LED lamp size, it delivers bright, uniform illumination while reducing energy costs.
| Model | SL-25-40M | SL-25-100M | SL-25-150M | SL-25-240M |
|---|---|---|---|---|
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/180/200 | 240/300 |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/70mm |
| Installation Height (m) | 3-8 | 6-10 | 8-12 | 10-14 |
| Input Voltage | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| Light source | LED | LED | LED | LED |
| Luminaire efficacy (lm/W) | 130-170 | 130-170 | 130-170 | 130-170 |
| Color Temperature | 4000 | 4000 | 4000 | 4000 |
| Color rendering index | ≥70 | ≥70 | ≥70 | ≥70 |
The Crescent SL-25 series LED street lights provide comprehensive lighting solutions for roads and streets, compliant with ENEC, CB, CE, EMC, LM79, and Rohs standards.
Available in 30-320W configurations with ultra-high luminous efficiency and multiple lighting distribution options. Features intelligent control systems including timing dimming, 0-10v dimming, Dali, Zigbee, and NB-Lot. Both Class I and Class II options available.
Our LED Street Light Fixtures are carefully packaged to ensure safe arrival. Each fixture is securely wrapped and cushioned to prevent transit damage.
We partner with reliable carriers for efficient delivery, providing tracking information for your convenience.
