제품 상세 정보:
결제 및 배송 조건:
|
| 힘: | 30W-300W | 작동 내구 수명: | > 70000hrs |
|---|---|---|---|
| 보호 등급: | IP66 | 색 온도: | 3000K 4000K 5700K 6500K |
| 위르라티: | 5 년 | 입력 전압: | AC100-277V |
| 전력 계수: | > 0.95 | 크기: | 555*210*143mm |
| 강조하다: | Inventronics LED street lamp,aluminum LED street light,high power factor LED driver |
||

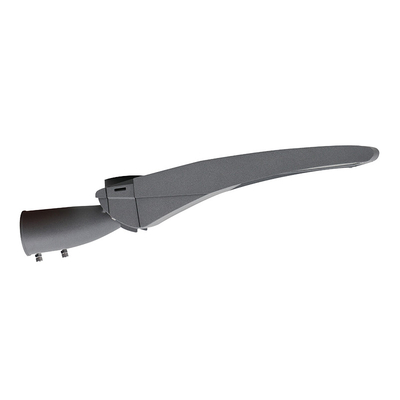

The LED Street Light Fixtures product is a high-quality luminaire designed for outdoor lighting applications. It features a durable body made of ADC12 International Standard Aluminium, ensuring longevity and resistance to harsh weather conditions. The fixture is lightweight, weighing only 2.9 KG, making it easy to install and maintain.
| Attribute | Value |
|---|---|
| Power | 30W-300W |
| Working Lifetime | >70000hrs |
| Protection Grade | IP66 |
| Color Temperature | 3000k 4000k 5700k 6500k |
| Warranty | 5 Years |
| Input Voltage | AC100-277V |
| Power Factor | >0.95 |
| Size | 555*210*143mm |
| Model | SL-25-40M | SL-25-100M | SL-25-150M | SL-25-240M |
|---|---|---|---|---|
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/180/200 | 240/300 |
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/70mm |
| Installation Height (m) | 3-8 | 6-10 | 8-12 | 10-14 |
| Input Voltage | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
| Light source | LED | LED | LED | LED |
| Driver | other brand of driver(upon request) | other brand of driver(upon request) | other brand of driver(upon request) | other brand of driver(upon request) |
| Luminaire efficacy (lm/W) | 130-170 | 130-170 | 130-170 | 130-170 |
| Color Temperature | 4000 | 4000 | 4000 | 4000 |
| Color rendering index | ≥70 | ≥70 | ≥70 | ≥70 |
Crescent SL-25 series LED street lights offer comprehensive lighting solutions for roads and streets. Compliance with international standards such as ENEC, CB, CE, EMC, LM79, Rohs ensures quality and safety.
This series covers a full wattage range from 30 to 320W, providing ultra-high luminous efficiency and various lighting distribution options. An intelligent control system is integrated, offering features like timing dimming, 0-10v dimming, Dali, Zigbee, NB-IoT, and more for enhanced functionality. Both Class I and Class II options are available for flexible installation as per requirements.
Each LED Street Light Fixture is carefully packaged in a sturdy cardboard box to ensure safe transportation. The fixture is wrapped in protective foam to prevent any damage during shipping.
We offer fast and reliable shipping for all our LED Street Light Fixtures. Orders are typically processed within 1-2 business days and shipped via trusted carriers to ensure timely delivery. Tracking information will be provided once the order has been dispatched.
