| 소재: | ADC 12 주사형 알루미늄 | 체색: | 검은 색, 흰색, 갈색, 이중 회색 |
|---|---|---|---|
| 입력 와트수: | 60W | CCT: | 3000-6500K |
| 입력 전압: | AC90-305V | 루멘: | 7200LM |
| IP: | 66 | Ik: | 08 |
| 강조하다: | 60w 알루미늄은 가로등을 이끌었습니다,7200 루멘 가로등 60 와트,7200lm 알루미늄은 가로등을 이끌었습니다 |
||

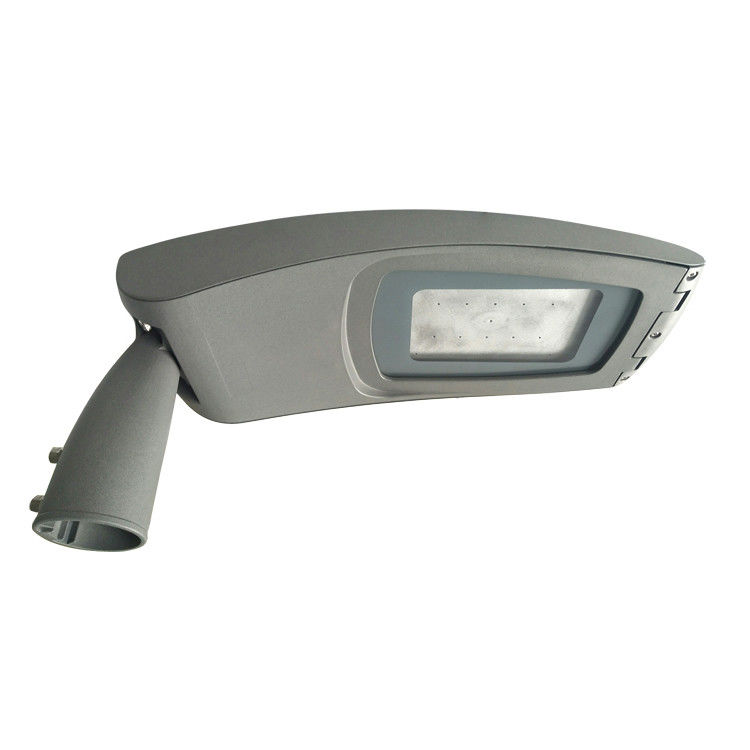

Tool free Aluminium led street light pole adapter 60mm 76mm
Product Description
*ZHSL-13 family is a high-performance street light available in three size
*ZHSL-13 have 3 size, from 50w to 150w.
*The luminous will be at least 120lm/w
*Small size Product Size:641*241*114mm
*Finish:power coating,general colour will be :double grey/sandy black/matt silver
*Item No.:ZHSL-13-50
*NW/GW:9.8/11.5kgs
*Packing Size:69.5*28.5*13cm
Product Specification
| Product Code | ZHSL-13-50 | ZHSL-13-100 | ZHSL-13-150 |
| Input Wattage | 50W | 100W | 150W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 5500-6250lm | 9200-10400lm | 17250-19500lm |
| Input Voltage | AC90-305V | AC90-305V | AC90-305V |
| Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz |
| Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 |
| Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 |
| Temperature of working condition | -40-50℃ | -40-50℃ | -40-50℃ |
| Humidity of working condition | 20%-90%RH | 20%-90%RH | 20%-90%RH |
| LED Lifetime | 50000h | 50000h | 50000h |
| Protection Grade | IP66 | IP66 | IP66 |
| Installation Pipe Diameter | Φ60mm | Φ60mm | Φ60mm |
| Installation Height | 4-8m | 6-10m | 8-12m |
| Net Weight | 3.9kgs | 5.4kgs | 9.8kgs |
| Gross Weight | 4.6kgs | 6.5kgs | 11.5kgs |
| Packing Size(mm) | 695*285*130 | 790*340*135 | 970*415*180 |
| Product Size(mm) | 641*241*114 | 738*289*114 | 923*360*150 |
Package
Equipment
Exihibition
Company profile
* A professional origin die casting manufacturer of led outdoor light.
* With more than 2 decades years experience.
* 10000+ square meter plant, 120 employees, located in China Ninghai Mould City
* Completed lighting production equipment & workshop: semi-automatic die casting machines, CNC drilling treatment, Sandblast machine, Powder spraying line, Lamps assembly line, Aging test line.
* Full facilities of outdoor lighting testing for IP/ IK/ Salt Spray / Thermal / IES files, etc.
* Offering led complete-set lamp and empty housing, including led street light / led solar street light /led high bay light / led high pole light / led garden light / led urban light.
* 6 elite designers & engineers, developing 8-12 new styles every year.
* ISO9001 quality control system.
* CE, RoHS, TUV certificates.
* 5-7years guarantee
* ODM and OEM service are both available to customers domestic and overseas.
Why choose us
1.Die-casting Man has more than 21 years experience in manufactuering the outdoor lighting.
2.We have our own die-casting machine,CNC machine,spray line,assembling line.In this way,will be easy to control the quality.
3.And we also have our own tooling shop and develop department,can help customer develop their own products.
